Brakes (front): Ventilated discs, dual-piston calipers |
 |
 |
 |
 |
 |
 |
Brakes (rear): Ventilated discs, single-piston calipers |
 |
 |
 |
 |
 |
 |
Brakes: 4-channel/4-sensor/4-wheel Anti-lock Brake System (ABS) |
 |
 |
 |
 |
 |
 |
Brakes: Active Torque Vectoring |
 |
 |
 |
 |
 |
 |

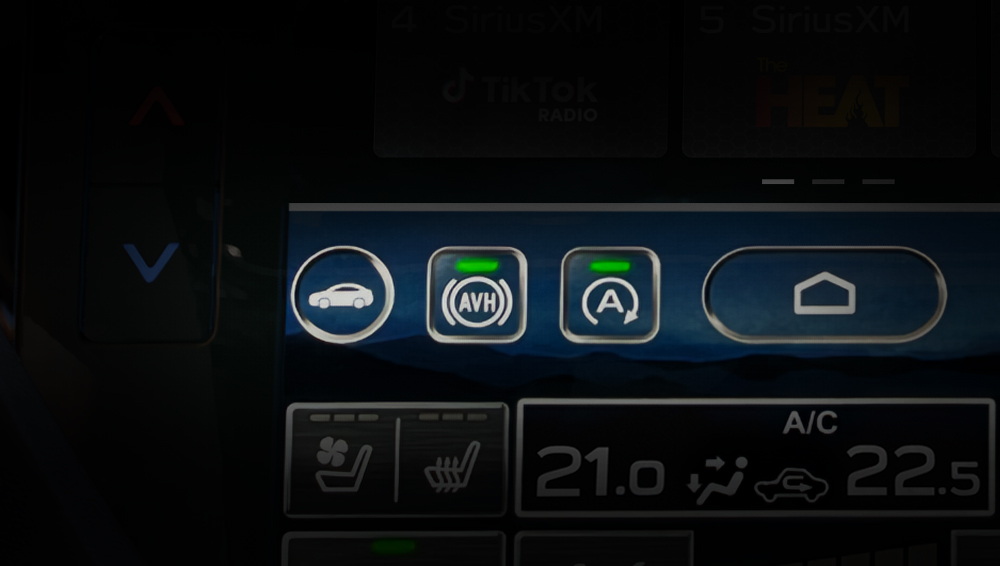

Brakes: Auto Vehicle Hold (AVH) |
 |
 |
 |
 |
 |
 |
Brakes: Brake assist system |
 |
 |
 |
 |
 |
 |
Brakes: Brake override system |
 |
 |
 |
 |
 |
 |
Brakes: Electronic Brake-force Distribution (EBD) |
 |
 |
 |
 |
 |
 |
Brakes: Power-assisted, dual-diagonal system |
 |
 |
 |
 |
 |
 |
Parking brake: Electronic with push-button actuation |
 |
 |
 |
 |
 |
 |
Steering: Speed-sensitive, variable gear ratio, electric-assisted rack-and-pinion |
 |
 |
 |
 |
 |
 |
Structure: Advanced ring-shaped reinforcement frame |
 |
 |
 |
 |
 |
 |
Structure: Dual side-impact door beams |
 |
 |
 |
 |
 |
 |
Structure: Energy-absorbing crumple zones (front and rear) |
 |
 |
 |
 |
 |
 |

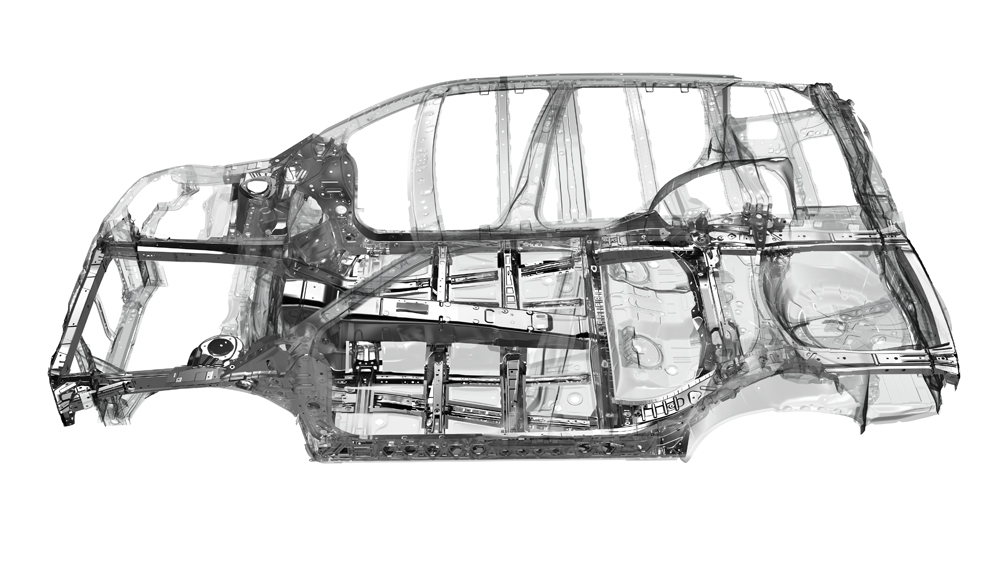

Structure: Subaru Global Platform (SGP) |
 |
 |
 |
 |
 |
 |
Structure: Towing access points (1 front, 1 rear) |
 |
 |
 |
 |
 |
 |

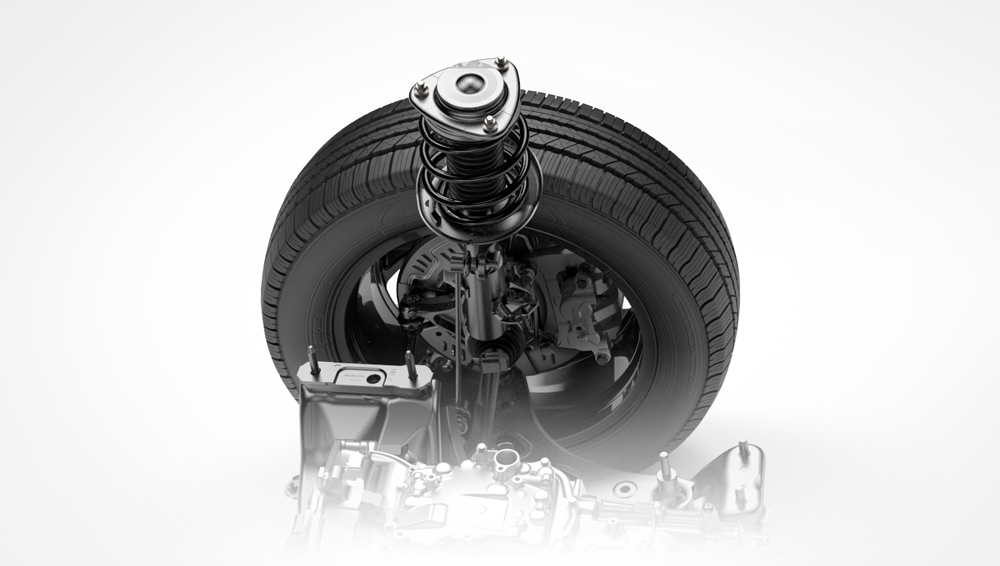

Suspension (front): MacPherson-type struts with coil springs and stabilizer bar |
 |
 |
 |
 |
 |
 |

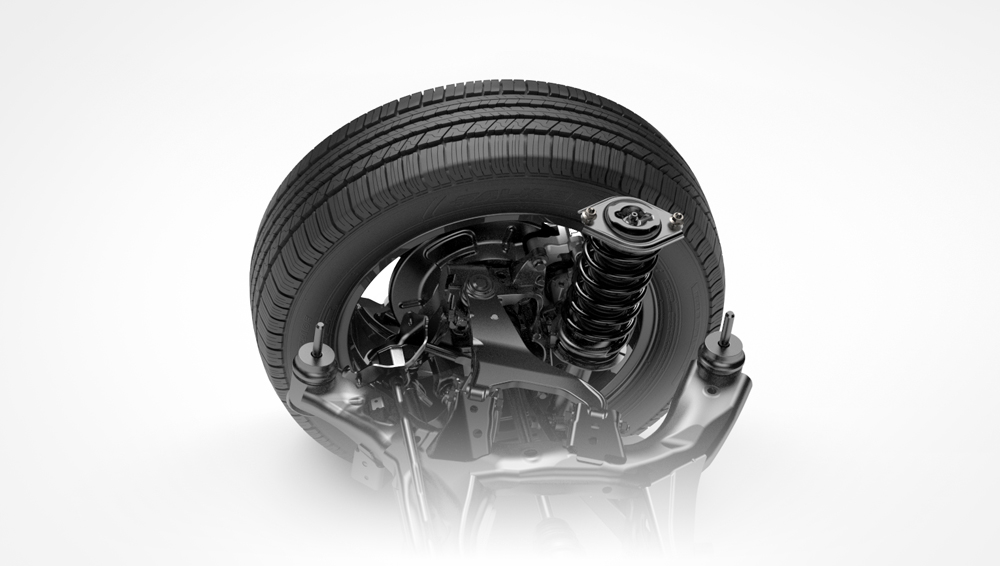

Suspension (rear): Double wishbone with coil springs and stabilizer bar |
 |
 |
 |
 |
 |
 |
Suspension: 4-wheel, fully independent |
 |
 |
 |
 |
 |
 |
Suspension: Stablex dampers |
 |
 |
 |
 |
 |
 |
Bore x stroke (mm): 94.0 x 90.0 |
 |
 |
 |
 |
 |
 |
Compression ratio: 12.0 |
 |
 |
 |
 |
 |
 |
Displacement (cc): 2498 |
 |
 |
 |
 |
 |
 |
Emissions: Tier3 Bin30/LEV4 SULEV30 |
 |
 |
 |
 |
 |
 |

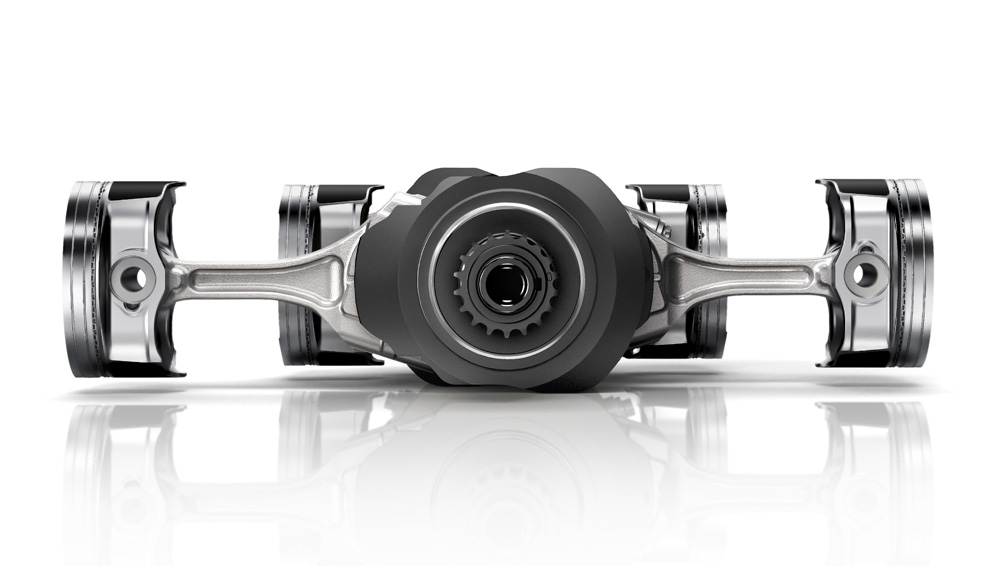

Engine layout: Horizontally-opposed, 4-cylinder |
 |
 |
 |
 |
 |
 |
Engine: 180-hp, 2.5-L Direct Injection, SUBARU BOXER® |
 |
 |
 |
 |
 |
 |
Engine: 182-hp, 2.5-L Direct Injection, SUBARU BOXER® |
 |
 |
 |
 |
 |
 |
Fuel octane rating (minimum/recommended) (AKI): 87 |
 |
 |
 |
 |
 |
 |
Fuel system: Direct fuel injection with electronic throttle control |
 |
 |
 |
 |
 |
 |
Intake system: Natural Aspiration |
 |
 |
 |
 |
 |
 |
Max RPM (tachometer redline): 6,000 |
 |
 |
 |
 |
 |
 |
Max RPM (tachometer redline): 6,100 |
 |
 |
 |
 |
 |
 |
Output (max): 180 hp @ 5,800 rpm |
 |
 |
 |
 |
 |
 |
Output (max): 182 hp @ 5,800 rpm |
 |
 |
 |
 |
 |
 |
Torque (max) (lb-ft): 176 lb-ft @ 4,400 rpm |
 |
 |
 |
 |
 |
 |
Torque (max) (lb-ft): 178 lb-ft @ 3,700 rpm |
 |
 |
 |
 |
 |
 |
Valve mechanism: 16-valve DOHC with Variable Valve Timing (VVT) |
 |
 |
 |
 |
 |
 |
Differential (centre): Electronically controlled multi-plate transfer clutch |
 |
 |
 |
 |
 |
 |
Differential (Rear): Standard open-type |
 |
 |
 |
 |
 |
 |

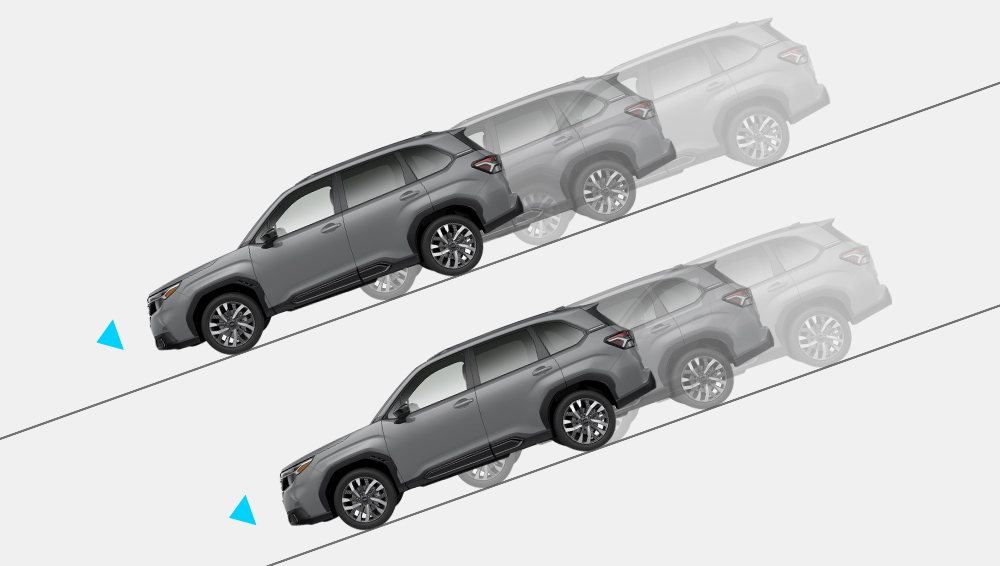

Drivetrain feature: Hill Descent Control |
 |
 |
 |
 |
 |
 |

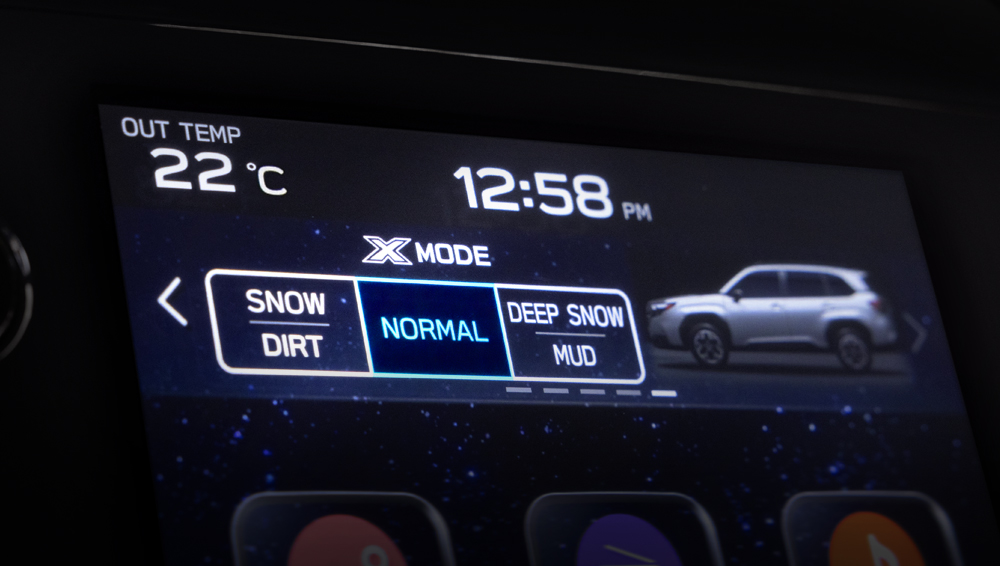

Drivetrain feature: X-MODE® |
 |
 |
 |
 |
 |
 |
Drivetrain feature: X-MODE® (dual-function) |
 |
 |
 |
 |
 |
 |
Drivetrain: Short ratio transfer and rear differential gearing |
 |
 |
 |
 |
 |
 |

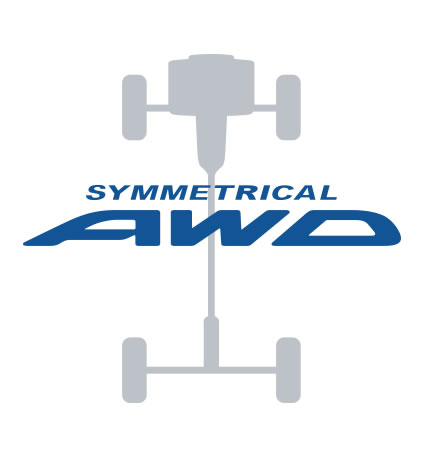

Drivetrain: Subaru Symmetrical Full-Time All-wheel Drive system (AWD) |
 |
 |
 |
 |
 |
 |
Transmission feature: CVT oil cooler |
 |
 |
 |
 |
 |
 |
Transmission feature: Gear position display |
 |
 |
 |
 |
 |
 |
Transmission feature: Lock-up torque converter |
 |
 |
 |
 |
 |
 |
Transmission feature: Manual mode with paddle shift controls |
 |
 |
 |
 |
 |
 |
Transmission feature: SI-DRIVE® (2-mode with Sport#) |
 |
 |
 |
 |
 |
 |
Transmission feature: SI-DRIVE® (2-mode) |
 |
 |
 |
 |
 |
 |
Transmission feature: Transmission shift lock |
 |
 |
 |
 |
 |
 |
Transmission modes: Normal |
 |
 |
 |
 |
 |
 |
Transmission modes: Normal; 8-speed manual mode |
 |
 |
 |
 |
 |
 |
Transmission: Lineartronic® CVT |
 |
 |
 |
 |
 |
 |
